METALLIZED POLYPROPYLENE AC CAPACITORS

类型:

CBB62 X2

产品特点:

Dissipation factor is normaly low and is stable against high frequency and change of temperature.
Recommended for high-frequenly circuit.
This type is self-healing flat style capacitor,winded with metalized polypropylene Film as dielectric,Plastic coating ,high reliability and safety.

技术特性:

Capacitance Range	0.001-2.2uF
Capacitance Tolerance	J(±5%) K(±10%) M(±20%)
Dissipation Factor	0.1% at 10KHZ and 25℃
Operating Temperature Range	-40℃~100℃
Climatic Category	40/100/21
Rated Voltage	275VAC
Testing Voltage	2200VDC 时间5S
Insulation Resistance	C≤ 0.33uF ≥32000MΩ C > 0.33uF ≥15000MΩ

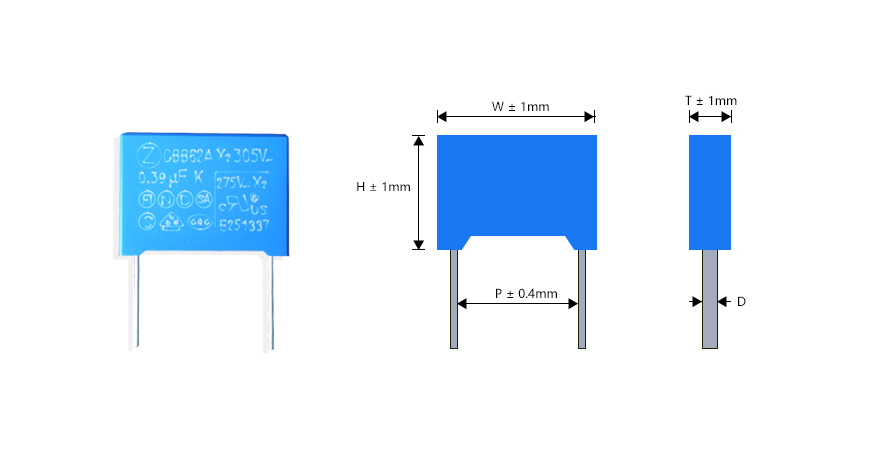

尺寸:(单位 mm)

CODE	MFD	VAC	W	H	T	P	dΦ
102-103	0.001-0.01	250/275/330	13	9	4	10	0.6
103	0.01	250/275/330	13	11.5	5.5	10	0.6
123	0.012	250/275/330	13	11.5	5.5	10	0.6
153	0.015	250/275/330	13	11.5	5.5	10	0.6
183	0.018	250/275/330	13	11.5	5.5	10	0.6
333	0.033	250/275/330	13	11.5	5.5	10	0.6
393	0.039	250/275/330	13	11.5	5.5	10	0.6
473	0.047	250/275/330	13	11.5	5.5	10	0.6
563	0.056	250/275/330	13	11.5	5.5	10	0.6
683	0.068	250/275/330	13	12	6	10	0.6
823	0.082	250/275/330	13	12	6	10	0.6
104	0.1	250/275/330	13	12	6	10	0.6
103	0.01	250/275/330	18	11	5	15	0.6
333	0.033	250/275/330	18	11	5	15	0.6
473	0.047	250/275/330	18	11	5	15	0.6
563	0.056	250/275/330	18	11	5	15	0.6
683	0.068	250/275/330	18	11	5	15	0.6
823	0.082	250/275/330	18	11	5	15	0.6
104	0.1	250/275/330	18	12	6	15	0.6
124	0.12	250/275/330	18	12	6	15	0.6
154	0.15	250/275/330	18	13	6.3	15	0.6
184	0.18	250/275/330	18	13	7	15	0.8
224	0.22	250/275/330	18	14.5	8.5	15	0.8
254	0.25	250/275/330	18	14.5	8.5	15	0.8
274	0.27	250/275/330	18	14.5	8.5	15	0.8
334	0.33	250/275/330	18	18	10	15	0.8
394	0.39	250/275/330	18	18	10	15	0.8
474	0.47	250/275/330	18	18	10	15	0.8
224	0.22	250/275/330	26	16.5	7	22.5	0.8
294	0.29	250/275/330	26.5	17	8.5	22.5	0.8
334	0.33	250/275/330	26.5	17	8.5	22.5	0.8
364	0.36	250/275/330	26.5	17	8.5	22.5	0.8
394	0.39	250/275/330	26.5	19	10	22.5	0.8
474	0.47	250/275/330	26.5	19	10	22.5	0.8
504	0.5	250/275/330	26	22	12	22.5	0.8
534	0.53	250/275/330	26	22	12	22.5	0.8
564	0.56	250/275/330	26	22	12	22.5	0.8
684	0.68	250/275/330	26	22	12	22.5	0.8
824	0.82	250/275/330	32	20	11	27.5	0.8
105	1	250/275/330	26	22	12	22.5	0.8
